6800GT complete screen corruption & reboot

SuAside · 5th February 2005, 11:22

I recently bought a Leadtek 6800GT AGP / Winfast A400 GT TDH and now I am experiencing serious problems.

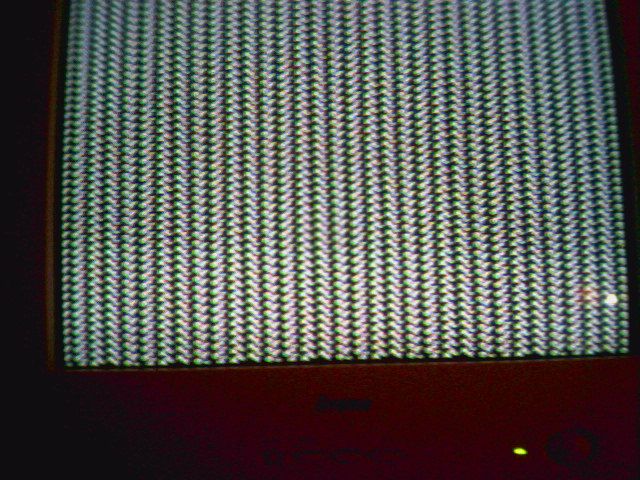

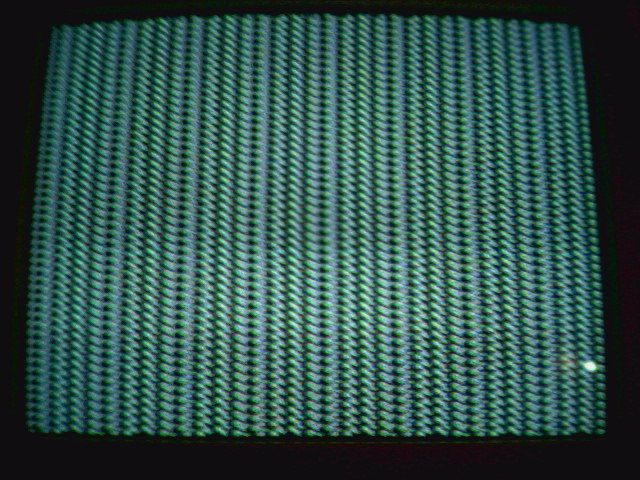

First everything was going fine and the card performed perfectly. After some time the computer would completely lock up and display a weird pattern like this:

other pics:
http://img.photobucket.com/albums/v2...800GTprob2.jpg
http://img.photobucket.com/albums/v2...800GTprob3.jpg
http://img.photobucket.com/albums/v2...800GTprob4.jpg

Seconds after displaying this pattern the computer would crash and reboot. At first this was very rare & I believed it to be a fluke.
Then this became a lot more frequent, artifacts and errors would show up a minute or so before the actual crash:

I checked all other hardware in my computer including the PSU (Antec True Power) & found everything working well. I booted with the bare necessities (mobo, cpu, hdd, 1 stick of memory & 3dcard) and still i encountered the same problem.

Since I had a 9800pro 3dcard prior to this nvidia based card i thought it might have something to do with the fact that some parts of the ATI driver might not have been deleted properly. I decided to uninstall the current drivers, run drivercleaner from driverheaven.com and reinstall a clean pair of drivers from the leadtek website. Still no dice, so I reinstalled with the official Nvidia drivers instead of the Leadtek packeted/modded ones. Still having the same problem.

Hence I formatted my OS partition and made a clean start. The install procedure (xp, SP2, dx9.0c) went flawlesly, but after installing the leadtek/nvidia drivers I couldn't even get passed the log-in screen:

After that I went into safe mode & installed older drivers (previous gen), hoping it would be a simple driver problem (since the lock ups only start after installing the drivers & everything is fine in safe mode). But no such luck...

Basically I have run out of ideas.
If I overlooked something please tell me

All help with this is greatly appreciated, but I think this will be a clearcut case for RMA...

PS: yes, the card is running @ stock speeds atm, reported temperature has never gone over 70°c & the card shows no signs of external abuse
PSS: excuse the poor quality of the pictures, they were taken with a cellphone

Sharpside · 5th February 2005, 13:28

I had the similar thing when i busted a ram ship on my old ti4600
I think rma is your only option.

5th February 2005, 15:33

I had the exact same problem with my sapphire x800 pro vivo. Artifacting is usually a memory-related problem and since your's an nvidia and mine is ati, we can disclude driverproblems.
I rma'ed mine, I suggest you do the same

Did you by any chance put heatsinks on the rams?

Sharpside · 5th February 2005, 16:40

Funny, i see your card is a leadtek, mine was one too.

easypanic · 5th February 2005, 17:45

Memory issue I guess, you have a borked memory chip on your card.

SuAside · 6th February 2005, 17:50

yeah, my first hunch when i saw the problem was memory corruption. was really hoping for it to be my own stupid fault somewhere... exams were over & i wanted to game the card to pieces!!!

Quote:

Originally posted by Dentnvr6
Did you by any chance put heatsinks on the rams?

it's leadtek

they put in a copper heatsink of something like 700gr that covers the gpu (front & back) and the memory

9th February 2005, 01:07

http://img.photobucket.com/albums/v2...800GTprob6.jpg
i've had thesame screen when i've overclocked my memory of x800xt too high. So i guess this is a memory issue.

SuAside · 9th February 2005, 09:50

yeah i returned it for RMA yesterday.

due to the random nature of the lockups i'm pretty sure it's a corrupt/faulty vidram problem.

we'll see what they say in a week or so... i'm pretty sure i'll get a brandnew card.

11th February 2005, 11:23

ya, screen corruption of that manor from my experience has always been bad memory on the videocard

5th February 2005, 11:22	#1
SuAside Member Join Date: May 2004 Posts: 402	6800GT complete screen corruption & reboot I recently bought a Leadtek 6800GT AGP / Winfast A400 GT TDH and now I am experiencing serious problems. First everything was going fine and the card performed perfectly. After some time the computer would completely lock up and display a weird pattern like this: other pics: http://img.photobucket.com/albums/v2...800GTprob2.jpg http://img.photobucket.com/albums/v2...800GTprob3.jpg http://img.photobucket.com/albums/v2...800GTprob4.jpg Seconds after displaying this pattern the computer would crash and reboot. At first this was very rare & I believed it to be a fluke. Then this became a lot more frequent, artifacts and errors would show up a minute or so before the actual crash: I checked all other hardware in my computer including the PSU (Antec True Power) & found everything working well. I booted with the bare necessities (mobo, cpu, hdd, 1 stick of memory & 3dcard) and still i encountered the same problem. Since I had a 9800pro 3dcard prior to this nvidia based card i thought it might have something to do with the fact that some parts of the ATI driver might not have been deleted properly. I decided to uninstall the current drivers, run drivercleaner from driverheaven.com and reinstall a clean pair of drivers from the leadtek website. Still no dice, so I reinstalled with the official Nvidia drivers instead of the Leadtek packeted/modded ones. Still having the same problem. Hence I formatted my OS partition and made a clean start. The install procedure (xp, SP2, dx9.0c) went flawlesly, but after installing the leadtek/nvidia drivers I couldn't even get passed the log-in screen: After that I went into safe mode & installed older drivers (previous gen), hoping it would be a simple driver problem (since the lock ups only start after installing the drivers & everything is fine in safe mode). But no such luck... Basically I have run out of ideas. If I overlooked something please tell me All help with this is greatly appreciated, but I think this will be a clearcut case for RMA... PS: yes, the card is running @ stock speeds atm, reported temperature has never gone over 70°c & the card shows no signs of external abuse PSS: excuse the poor quality of the pictures, they were taken with a cellphone __________________ Computed by a Core 2 Duo E6400 (2.13Ghz @ 3.2Ghz) kept frosty by a Zalman CNPS9700 on an Asus P5W DH Deluxe, fed by 2x 1Gb OCZ PC2-6400 4-4-4-12 @ 1600FSB 1:1 and puked back out by a MSI RX1950Pro.

5th February 2005, 13:28	#2
Sharpside Member Join Date: Jul 2004 Posts: 272	I had the similar thing when i busted a ram ship on my old ti4600 I think rma is your only option. __________________ [FONT=Arial] _PC_________________________________H2O_________Links____ - AMD Athlon XP 2600 TB @2.515Ghz..........- Whitewater.....\| 2.515Ghz - 512MB DDR PC2700 @457Mhz 2.2.2.5 ..............................\| Site - DFI Lanparty ultra rev.B .................................................. .....\| SuperPi - Leadtek FX5900xt ........................................- DD Maze4-1 - HD: 1x40 + 1x80 + 2x200 = 520Gig .................................................. .................................................. ..............[/FONT]

5th February 2005, 16:40	#4
Sharpside Member Join Date: Jul 2004 Posts: 272	Funny, i see your card is a leadtek, mine was one too. __________________ [FONT=Arial] _PC_________________________________H2O_________Links____ - AMD Athlon XP 2600 TB @2.515Ghz..........- Whitewater.....\| 2.515Ghz - 512MB DDR PC2700 @457Mhz 2.2.2.5 ..............................\| Site - DFI Lanparty ultra rev.B .................................................. .....\| SuperPi - Leadtek FX5900xt ........................................- DD Maze4-1 - HD: 1x40 + 1x80 + 2x200 = 520Gig .................................................. .................................................. ..............[/FONT]

5th February 2005, 17:45	#5
easypanic [M] Reviewer Join Date: Mar 2003 Posts: 1,823	Memory issue I guess, you have a borked memory chip on your card. __________________ \|^^^^^^^^^^^^^^^^^^\\|\|____ \|....The BEER TRUCK.... \|\|\|\|'""\|""°\_,__ \|___Just for You___l\|\|__\|__\|___\|) _____\| \|(@)(@)""""""""""""\|(@)(@)**\|(@)\|

9th February 2005, 09:50	#8
SuAside Member Join Date: May 2004 Posts: 402	yeah i returned it for RMA yesterday. due to the random nature of the lockups i'm pretty sure it's a corrupt/faulty vidram problem. we'll see what they say in a week or so... i'm pretty sure i'll get a brandnew card. __________________ Computed by a Core 2 Duo E6400 (2.13Ghz @ 3.2Ghz) kept frosty by a Zalman CNPS9700 on an Asus P5W DH Deluxe, fed by 2x 1Gb OCZ PC2-6400 4-4-4-12 @ 1600FSB 1:1 and puked back out by a MSI RX1950Pro.

5th February 2005, 15:33	#3
Dentnvr6 Posts: n/a	I had the exact same problem with my sapphire x800 pro vivo. Artifacting is usually a memory-related problem and since your's an nvidia and mine is ati, we can disclude driverproblems. I rma'ed mine, I suggest you do the same Did you by any chance put heatsinks on the rams?

9th February 2005, 01:07	#7
\|-Black-\| Posts: n/a	http://img.photobucket.com/albums/v2...800GTprob6.jpg i've had thesame screen when i've overclocked my memory of x800xt too high. So i guess this is a memory issue.

11th February 2005, 11:23	#9
ssl6 Posts: n/a	ya, screen corruption of that manor from my experience has always been bad memory on the videocard
